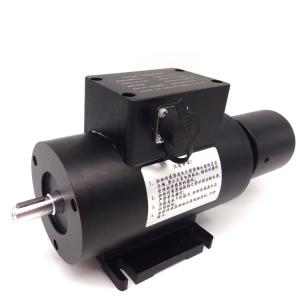

ZHKY905 0.05N.m 0.1N.m 0.2N.m 0.5N.m 1N.m 2N.m rotating contactless torque sensor with high accuracy and consumption

Model Number : ZHKY905

Type : Load Cell, torque sensor price

Place of Origin : Guangdong, China

Brand Name : SNC

Use : Torque detection

Theory : strain gauge sensor

Output : mV/V

Description : ZHKY905

Item : ZHKY905

Capacity : 0-0.05N.m-2N.m

Max rotation speed : 8000 RPM

Torque accuracy : 0.5%F.S, 0.2%F.S, 0.1%F.S

Torque Output : Frequency, 0-10v, 0-5v, 4-20 mA

Speed Output : pulse

Power supply : ±15 VDC or 24 VDC

Customization : support

Optional accessory : torque speed power meter, coupler

Packaging Details : 1 unit/ carton

Port : shenzhen

Supply Ability : 50 Piece/Pieces per Month Miniature rugged inline rotary shaft torque sensor load cell

Price : $550-1,000/units

Contact Now

ZHKY905 0.05N.m 0.1N.m 0.2N.m 0.5N.m 1N.m 2N.m rotating contactless torque sensor price

1, Product characteristics

1.1 Torque measuring function with non-contact power and signal transmission and digitalized output signal
1.2 Can transmit static torque, rotary torque and dynamic torque signal.
1.3 Signal transmission is not affected by rotation, speed or direction. Ideal for long term high speed operation.
1.4 High accuracy, good stability
1.5 Small size, light weight, for easy installation
1.6 Transmits clock-wise and anti-clock-wise torque signal continuously.
1.7 No ring type wear or break down on parts, can operate for long periods at high speed.
1.8 Resists interference, can install anywhere, any direction.

2, Features

When the range is less than 2N.m, the friction torque of the bearing at both ends of the sensor becomes a non-negligible interference factor. ZHKY905 has made improvement here to avoid the friction torque of the bearing interference.

3, Performance

Torque Capacity	0~±0.05N.m—±2N.m
Torque Output	5~15Khz, 4~20mA, 1~5V, 0-10V
Speed measurement	0~1000, 3000, 6000, 8000RPM
Speed output	60pulse/ rotate, 4-20mA, 1~5V
Accuracy	±0.25%,±0.5%
Operating Temperature	-20~60℃
Operating humidity	0~90%RH
Frequency response	100μs
Stability	0.3%/ year
Insulation resistance	≥200MΩ(100VDC)
Excitation Voltage	±15V DC, 24V DC
Overload Capacity	120%
Net weight	2kg

4, Product details

ZHKY905 0.05N.m 0.1N.m 0.2N.m 0.5N.m 1N.m 2N.m rotating contactless torque sensor with high accuracy and consumption

Accessories

ZHKY905 0.05N.m 0.1N.m 0.2N.m 0.5N.m 1N.m 2N.m rotating contactless torque sensor with high accuracy and consumption

Product Uses

ZHKY905 0.05N.m 0.1N.m 0.2N.m 0.5N.m 1N.m 2N.m rotating contactless torque sensor with high accuracy and consumption

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

ZHKY905 0.05N.m 0.1N.m 0.2N.m 0.5N.m 1N.m 2N.m rotating contactless torque sensor with high accuracy and consumption

Packaging & Shipping

ZHKY905 0.05N.m 0.1N.m 0.2N.m 0.5N.m 1N.m 2N.m rotating contactless torque sensor with high accuracy and consumption

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
